ESPHome ratgdo

In order to install the firmware, first pick your door opener control protocol, then pick your ratgdo control board version. No programming or other software required.

Choose your GDO Control Protocol:

Security + 2.0, round yellow learn button.

Security + 2.0
round yellow learn button
excluding models 8500/RJ020 & 8500C/RJ020C Security + 1.0, purple, orange, or red learn button.

Security + 1.0, purple, orange, or red learn button.

Security + 1.0
purple, brown, orange or red learn button
or jackshaft models 8500/RJ020 & 8500C/RJ020C
Security + 1.0 support is experimental and may not work for all openers/wall panels. Dry contact control.

Dry contact control.

Dry Contact control
Requires open & close limit switches

Choose your ratgdo control board:

v2.5i, v2.52i, v2.53i

ratgdo v2.5x
v2.5, v2.5i, v2.52i, v2.53i (black PCB) v2.0

v2.0

ratgdo v2.0
ESP8266 / D1 Mini (white PCB) v2.5 esp32

v2.5 esp32

ratgdo v2.5
ESP32 (black PCB) v2.0 esp32

v2.0 esp32

ratgdo v2.0
ESP32 (white PCB)

Wiring Diagram

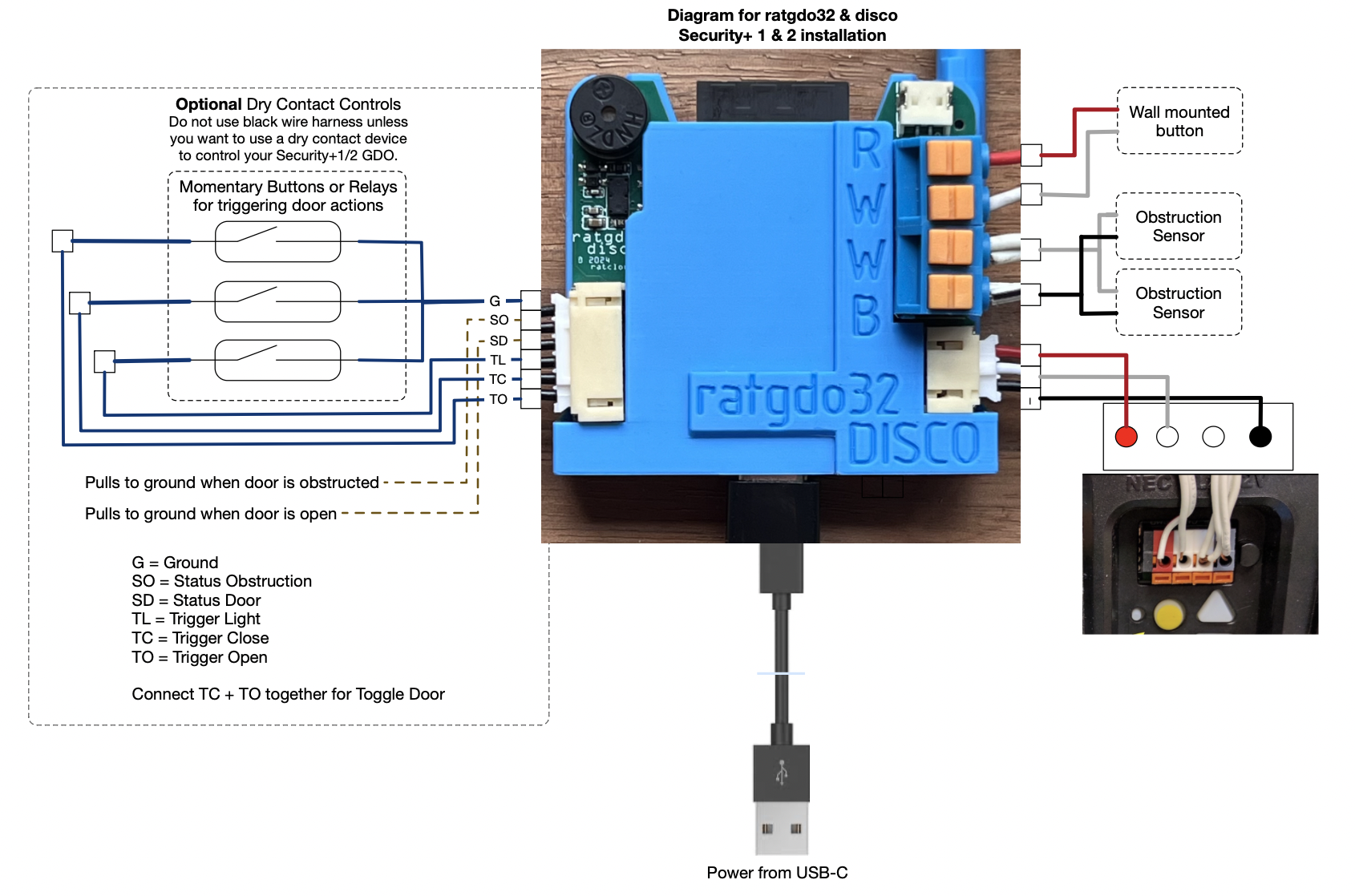

Security + 1 and 2 wiring diagram

Documentation

Web User Interface Documentation

Drivers

If you can't connect to your ratgdo board make sure you have the right driver installed for the type of board you have.

ratgdo v2.5i uses a CH340 USB to Serial chipset. [driver download]
Most D1 Minis use an FTDI USB to Serial chipset. [driver download]

Watch the driver and firmware installation [video on YouTube].

Advanced Users

The device is adoptable in the ESPHome dashboard
The YAML configuration for additional boards and chips is available on GitHub
